Low Intensity Twin Aviation Obstruction Light IP67 Waterproof

Brand Name : WelandSignal

Model Number : OL10/32D

Certification : ROHS,CE

Place of Origin : SHAANXI, CHINA

MOQ : 1pc

Price : USD$149~169

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000pcs/month

Delivery Time : 3-7 working days

Packaging Details : Each has one small carton and 6pcs in one big carton

Light source : super bright medium intensity LED

Color : Red, Green, Yellow, Blue, White

Voltage : 110-220VAC,12VDC,4VDC,48VDC

Material : Polycarbonate, Shock-resistance, anti-UV, Salt and dust self-protection

Working Mode : Flashing, steady on

Peak intensity : 2500cd

Waterproof : IP67

Mounting : 4pcs bolts

Warranty : 5 years

OEM : color, flashing frequency, logo, carton design

Standard : Complies With ICAO Low-Intensity Obstacle Light Type A & B - Annex 14, 5th Edition, July 2009 (Red) And 6th Edition, July 2013 (Red).

Application : tower, chimney ,tall buildings, bridge aviation obstruction lighting area

Contact Now

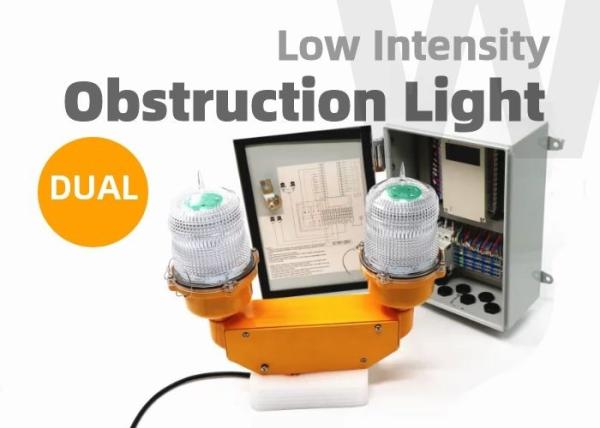

Low Intensity Twin Aircraft Warning Lights

The ICAO compliant type B WLTwin77 Dual aviation obstruction light is suitable for marking of high rise structures. These structures can be Steel Towers (such as Telecoms and GSM), Smokestacks, Buildings and any other potentially hazardous obstructions to air traffic with a steady burning red safety light



SPECIFICATIONS





Low Intensity Twin Aircraft Warning Lights


Mechanical Specifications Electrical Specifications



Peak Intensity



200~400cd

 Structure

Integrated Design



Working Model



 Flahing/Steady On Lens Material Polycarbonate



Protect Level



 IP67  Input Voltage 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC



LED



 Super-bright medium intensty Leds  Function Optional Synchronization



Temperature



 -45℃~70℃ Mounting 4 bolts M6



Automatic Light Control (ALC)



 Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency





Low Intensity Twin Aviation Obstruction Light IP67 Waterproof

Low Intensity Twin Aviation Obstruction Light IP67 Waterproof

KEY FEATURES



  • Use of a Fresnel lens for even distribution of the light and ensures the light beam is in the scope as required.
  • Based on LED technology for low power consumption and high efficiency.
  • Lamp housing – Polycarbonate cover with good anti-impact strength, thermal stability and high transmittance.
  • Die casting aluminum base with yellow colour powder-coated paint finish (available in red also), provides corrosion resistance and durability.
  • G3/4”pipe available separately for ease of mount.
  • Self-contained compartment, with stainless steel wire which is used to secure the unit against falling during maintenance.
  • Built-in photocell can switch ON/OFF the light at dawn and dusk (optional).
  • Steady burning or flashing type (no need external controller).

SIZE (mm)

Low Intensity Twin Aviation Obstruction Light IP67 Waterproof

STANDARS

Low Intensity Twin Aviation Obstruction Light IP67 Waterproof
